Cooler W24 AmpereOne 5964 - Tower PC Active RoHS

item no.: A 2867

Product in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • LGA 5964 / For AmpereOne

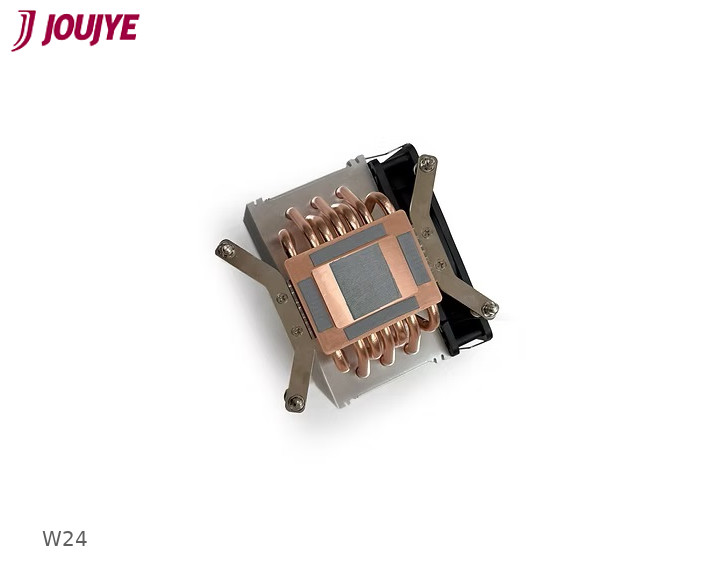

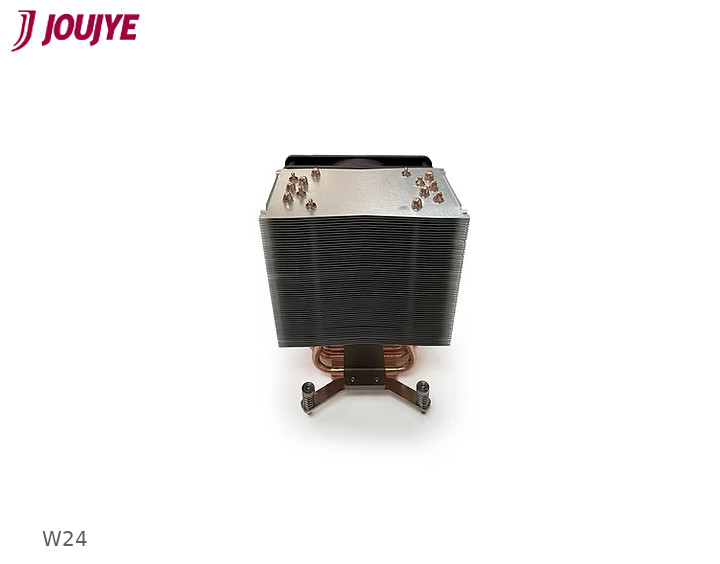

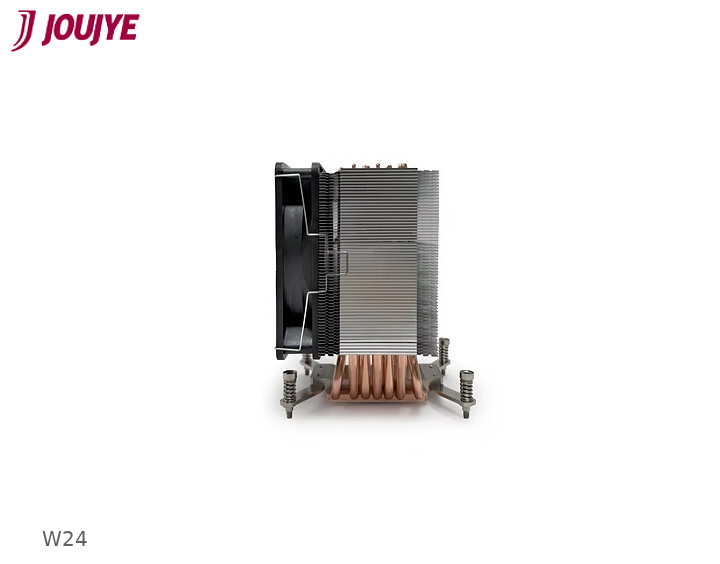

  • Copper Base + Direct Contact Heat Pipe + Aluminum Fins
  • Up to TDP 400W at 41°C ambient temperature
  • This cooling system has been specifically designed for the high thermal demands of AmpereOne platforms in Socket 5964 and is intended for use in tower PCs and comparable systems with sufficient height clearance. The copper base quickly absorbs heat from the processor and efficiently transfers it to the integrated heatpipe system. The heatpipes reliably transport the heat from the contact surface to the large-area aluminium fins. Targeted active airflow (fan) continuously removes the heat, ensuring a stable operating temperature even under high power loads. The cooling system guarantees performance, reliability, and extended system lifespan under demanding operating conditions
  • Disclaimer: All product specifications and product images are subject to change without notice

    • SPECIFICATIONS:
    Application
    CPU Socket LGA 5964
    CPU Recommend for AmpereOne ®
    Solution Active Cooler for Tower PC
    Technical Data
    Overall dimension 125.0 x 120.0 x 158.0 mm
    Weight 994g
    Heat Sink
    Material Copper Base + Direct Contact Heat Pipe + Aluminum Fins
    Screw Type M4
    Installation torque 12-14 lb-in

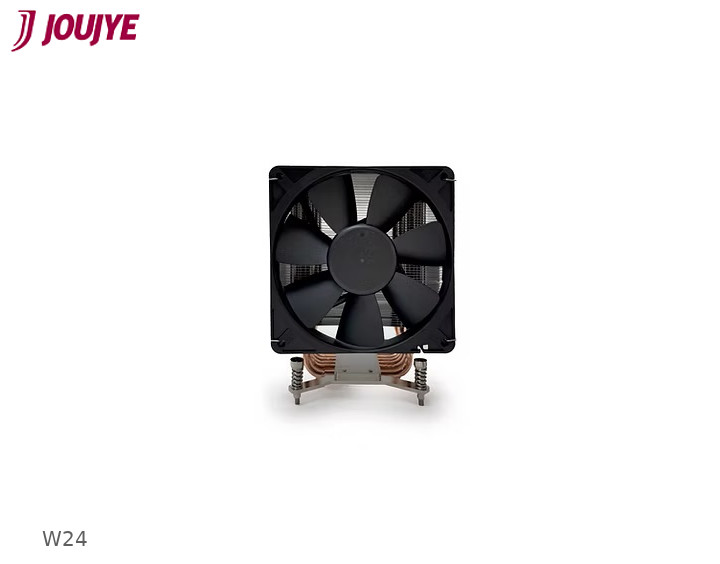

    Fan
    Fan Dimension 120 x 120 x 25 mm
    Speed At Duty Cycle 0~20%: 600 ± 200 RPM
    At Duty Cycle 50%: 1650 ± 200 RPM
    At Duty Cycle 100%: 2400 ± 10% RPM
    Bearing 2 Ball Bearing
    Rated Voltage 12V
    Power At Duty Cycle 0~20%: 0.6W
    At Duty Cycle 50%: 1.92W
    At Duty Cycle 100%: 5.4W
    Air Flow At Duty Cycle 0~20%: 21.98 CFM
    At Duty Cycle 50%: 60.45 CFM
    At Duty Cycle 100%: 87.93 CFM
    Noise Level At Duty Cycle 0~20%: 16 dBA
    At Duty Cycle 50%: 30.25 dBA
    At Duty Cycle 100%: 38.89 dBA
    Static Pressure At Duty Cycle 0~20%: 0.25 mm-H2O
    At Duty Cycle 50%: 1.91 mm-H2O
    At Duty Cycle 100%: 4.05 mm-H2O
    Lead Wire Pin Out Pin1-Black (-)
    Pin2-Black (+)
    Pin3-Black (Tachometer/Signal output)
    Pin4-Black (PWM)
    Thermal grease Shin-Etsu (or equivalent) Pre-printed
    *All product specifications and product images are subject to change without notice.
