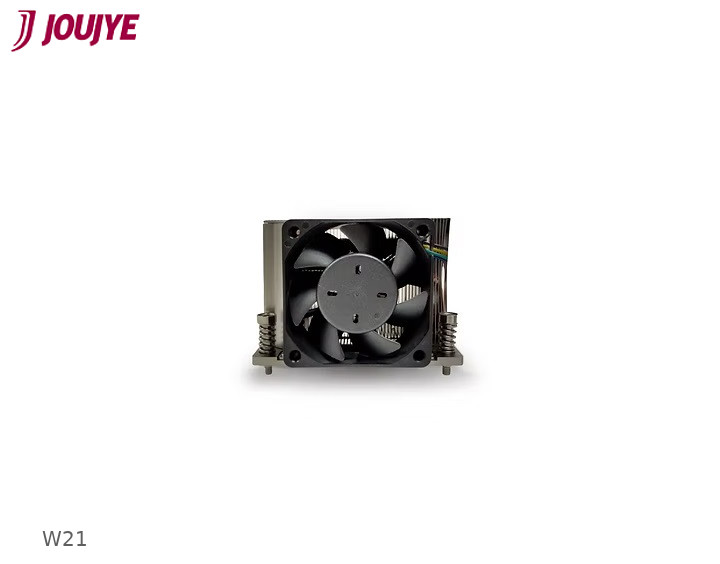

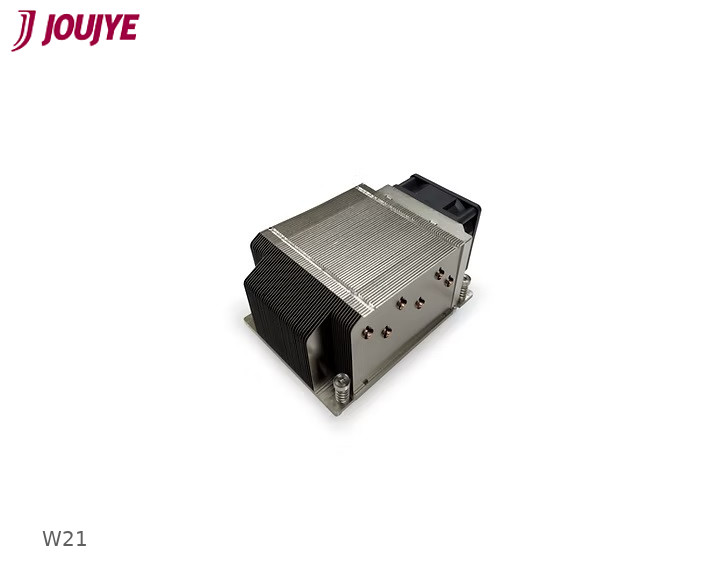

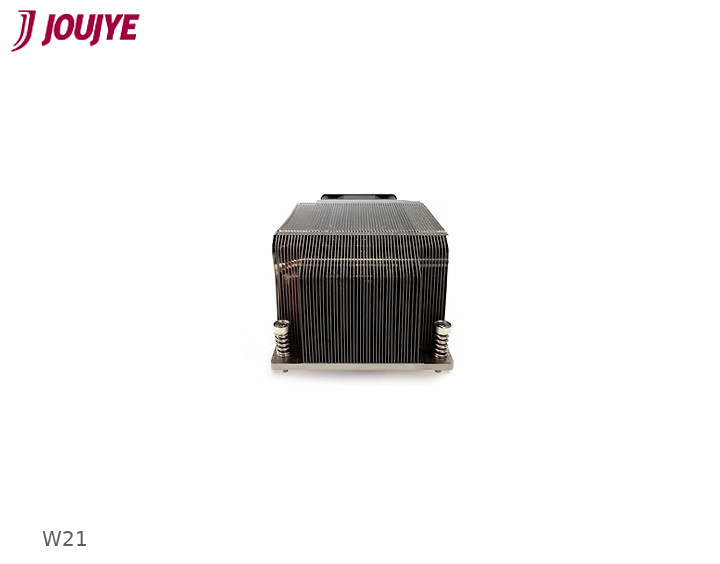

Cooler W21 AmpereOne 5964 - 2U Active RoHS

item no.: A 2864

Product in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • LGA 5964 / For AmpereOne
  • Aluminum + Copper Heatsink Base + Heatpipe + Aluminum Fins
  • Up to TDP 400W at 41°C ambient temperature

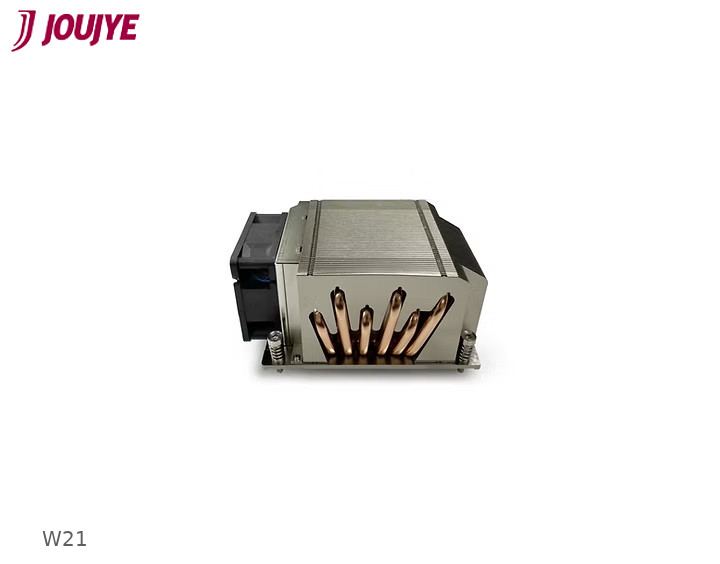

  • The copper base enables fast and efficient heat transfer, while direct-contact heat pipes provide effective heat dissipation. Together with precisely engineered aluminium fins, the cooler delivers optimized thermal distribution, ensuring maximum performance and reliable system stability under demanding workloads in high-power, high-density server environment.
  • Disclaimer: All product specifications and product images are subject to change without notice

    • SPECIFICATIONS:
    Application
    CPU Socket LGA 5964
    CPU Recommend for AmpereOne ®
    Solution Active Cooler for 2U Server and up
    Technical Data
    Overall dimension 144.1 X 93.0 X 70.6 mm
    Weight 744g
    Heat Sink
    Material Aluminum + Copper Heatsink Base + Heatpipe + Aluminum Fins
    Fan
    Fan Dimension 60 x 60 x 25 mm
    Speed At Duty Cycle 0~20%: 2300 ± 10% RPM
    At Duty Cycle 50%: 5400 ± 10% RPM
    At Duty Cycle 100%: 11000 ± 10% RPM
    Bearing 2 Ball Bearing
    Rated Voltage 12V
    Power At Duty Cycle 0~20%: 0.84W
    At Duty Cycle 50%: 2.76W
    At Duty Cycle 100%: 18W
    Air Flow At Duty Cycle 0~20%: 11.91 CFM
    At Duty Cycle 50%: 28.38 CFM
    At Duty Cycle 100%: 58.31 CFM
    Noise Level At Duty Cycle 0~20%: 25.8 dBA
    At Duty Cycle 50%: 44.4 dBA
    At Duty Cycle 100%: 59.8 dBA
    Static Pressure At Duty Cycle 0~20%: 1.48 mm-H2O
    At Duty Cycle 50%: 7.54 mm-H2O
    At Duty Cycle 100%: 28.8 mm-H2O
    Lead Wire Pin Out Pin1-Black (-)
    Pin2-Yellow (+)
    Pin3-Green (Tachometer/Signal output)
    Pin4-Blue (PWM)

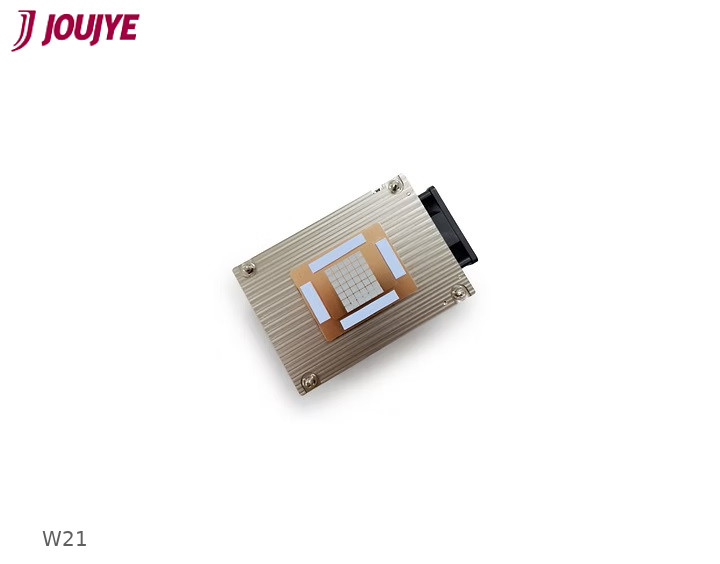

    Thermal grease Shin-Etsu (or equivalent) Pre-printed
    *All product specifications and product images are subject to change without notice.
