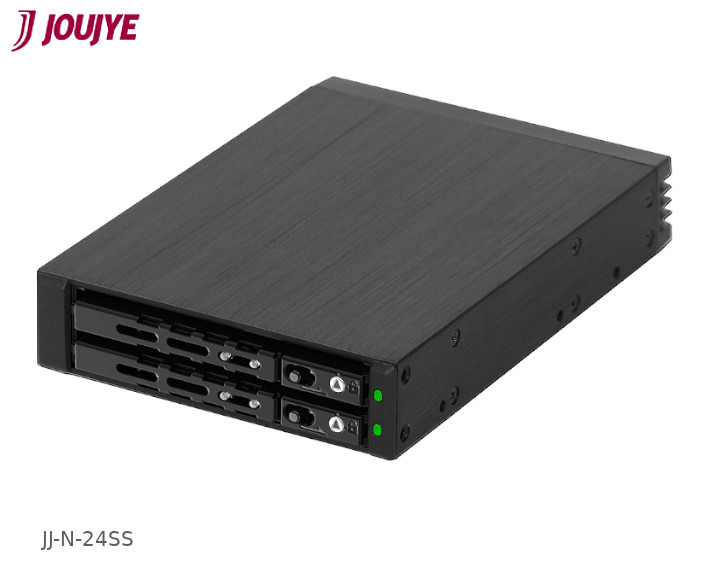

JJ-N-24SS 12G SATA/SAS for 2x2.5" SSD/HDD Backplane Cage

item no.: A 2862

available soon
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • 2 x 2.5" HDD (SSD*) hot-swap aluminum backplane cage with keylock and T-131A tray
  • Enables 2.5" SATA/SAS HDD/SSD* to be fit in 1 x 3.5" standard form factor drive bay
  • Reliable metal key lock to safeguard the HDD/SSD
  • Support up to 9.5mm height
  • Support SATA I,II, III and SAS I,II, III (12Gbps) HDD/SSD
  • Cableless connection

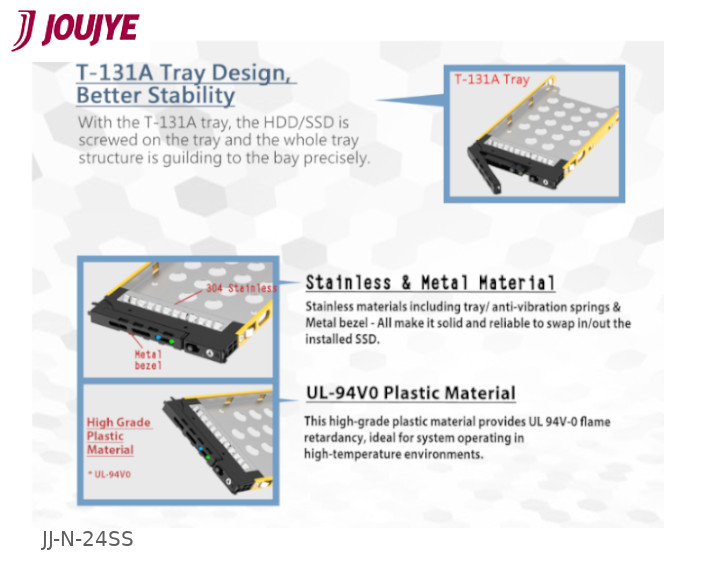

  • Aluminum tray/anti-vibration springs and metal bezel
  • High grade plastic UL-94 V-0 flame retardancy

    This 2.5" SSD backplane cage adapts upto two 2.5" drives into a standard 3.5" bay, offering a robust, cableless solution for high-reliability storage in servers and workstations. Constructed with an aluminum tray, anti-vibration springs and a metal bezel, it supports drives up to 9.5mm in height and is compatible with SATA I/II/III and SAS I/II/III (up to 12Gbps) HDDs/SSDs.

    Secure & Reliable: Equipped with a solid metal key lock to safeguard installed drives and prevent unauthorized removal
    Cableless Design: Integrated backplane connection eliminates extra cables for cleaner installations and improved airflow
    Durable Build: High-grade plastic components with UL-94 V-0 flame retardancy ensure safety and long-term reliability
    Vibration Control: Anti-vibration springs minimize mechanical stress, enhancing drive lifespan in demanding environments

    Ideal for data centers, enterprise storage systems, and any application requiring secure, compact, and high-performance drive mounting in a 3.5" enclosure.

    *SSD Solid State Drive (flash based drive)

    • SPECIFICATIONS:
    Model Name JJ-N-24SS
    Form Factor 1 x 3.5" Bay size for 2 x 2.5" HDD/SSD (upto 9.5mm)
    Support HDD Type 2.5" SATA I, II, III / SAS I, II, III (12Gbps) HDD & SSD

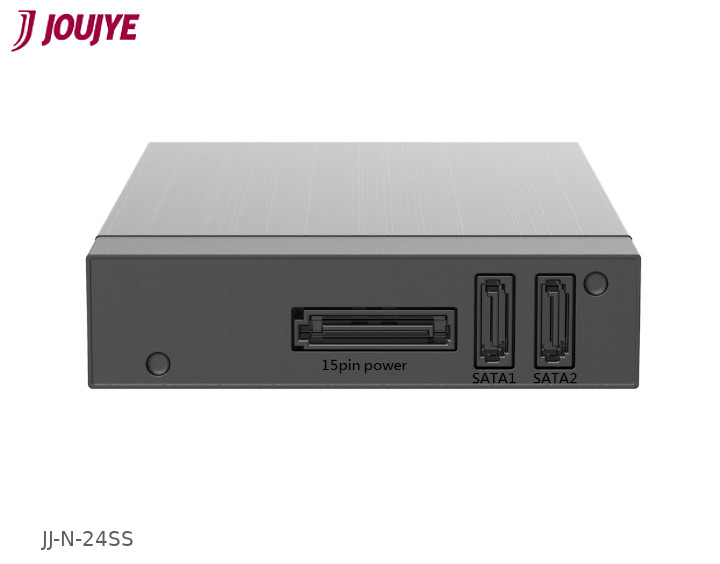

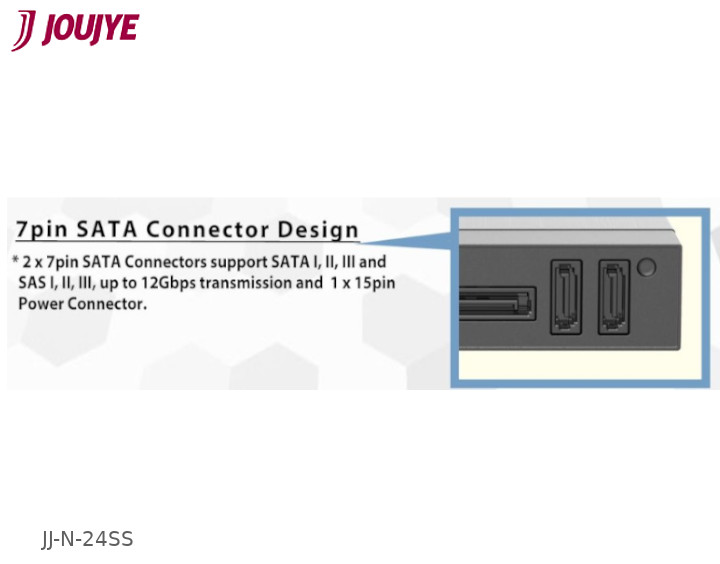

    Interface 7pin SATA connector x 2 and 15pin SATA power connector x 1

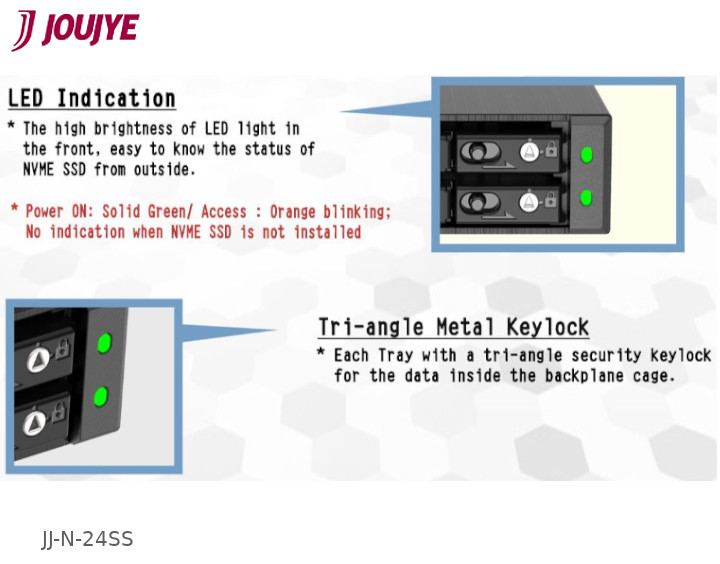

    LED Indication Power on: Solid Green / HDD Access: Orange blinking
    Security Tri-angle Key Lock
    Material Aluminum tray/anti-vibration springs and metal bezel
    High grade plastic UL-94 V-0 flame retardancy

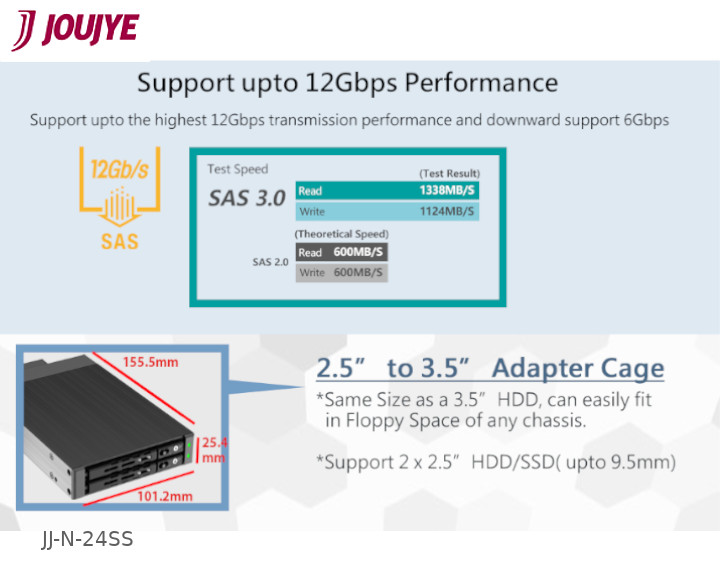

    Dimension 155(L) x 101.2(W) x 25.4(H) mm
    Weight 0.39kg
