P5-X16-4MCIOx8 PCIe GEN5 Switch card

item no.: A 2853

Not in stock

-- €

Hot-swap

With Broadcom pex89048

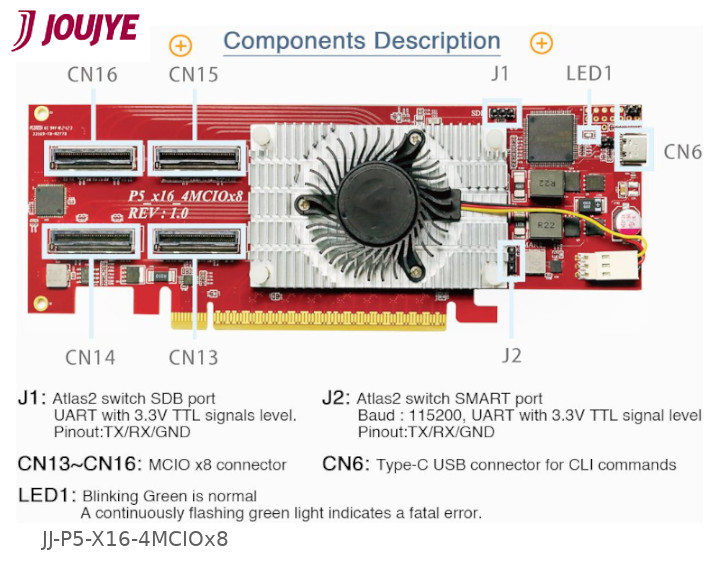

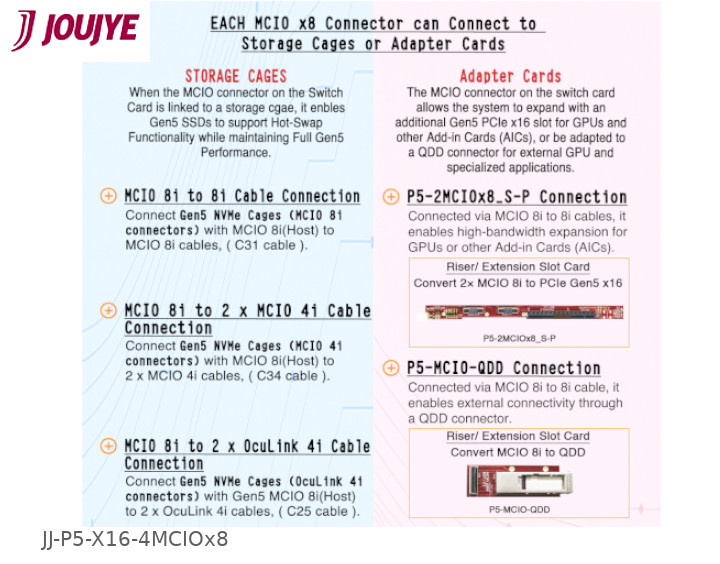

4 x MCIOx8 connectors

1 x Full-Height & Low-Porfile PCIe Slot Brackets

PCIe GEN5 x16 512GT/s in Upstream

PCIe GEN5 x32 1024GT/s in Downstream

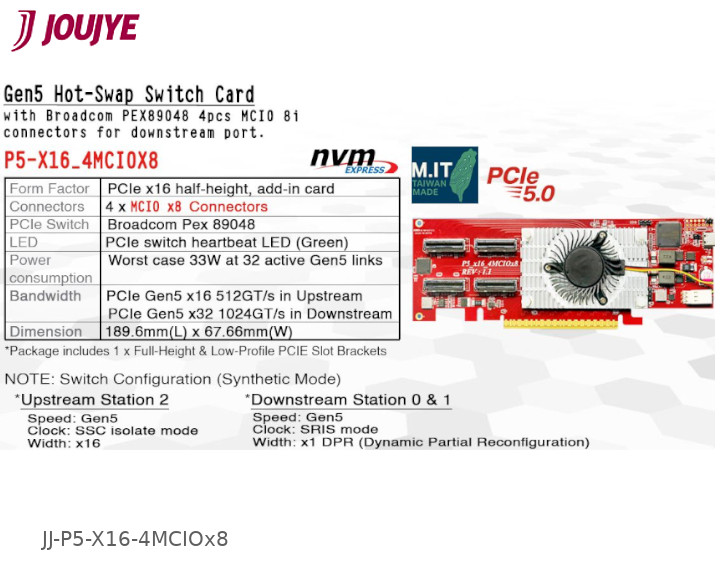

SPECIFICATIONS:

Model Name	P5-X16-4MCIOx8 PCIe GEN5 Switch card
Form Factor	PCIe x16 half-height,add-in card
PCIe Switch	Broadcom pex89048
Bandwidth	PCIe GEN5 x16 512GT/s in Upstream PCIe GEN5 x32 1024GT/s in Downstream
Power consumption	33W (worst case) at 32 active GEN5 links
LED indication	PCIe switch: heartbeat LED (green)
Dimensions [mm]	189.6 (L) x 67.66 (W) mm
Included	1 x Full height PCIe slot bracket 1 x Low profile PCIe slot bracket
