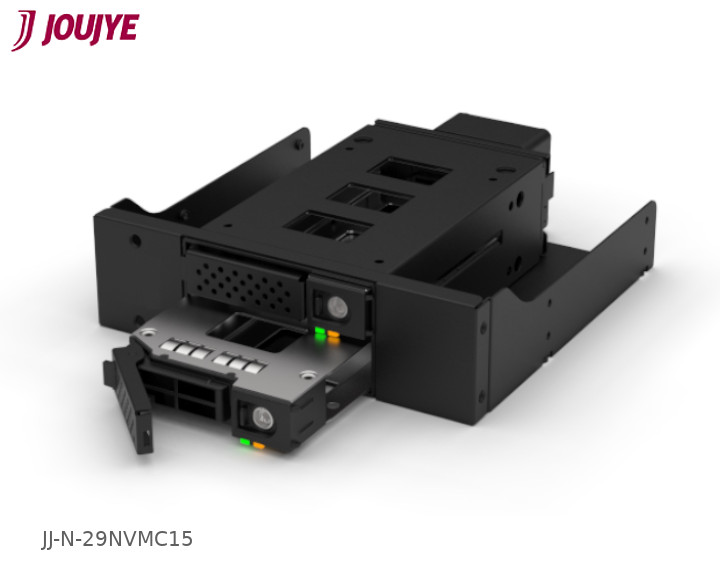

JJ-N-29NVMC15/GEN5 for 2 x 2,5" NVMe U.2 SSD / 1 x MCIOx8

item no.: A 2850

Not in stock

-- €

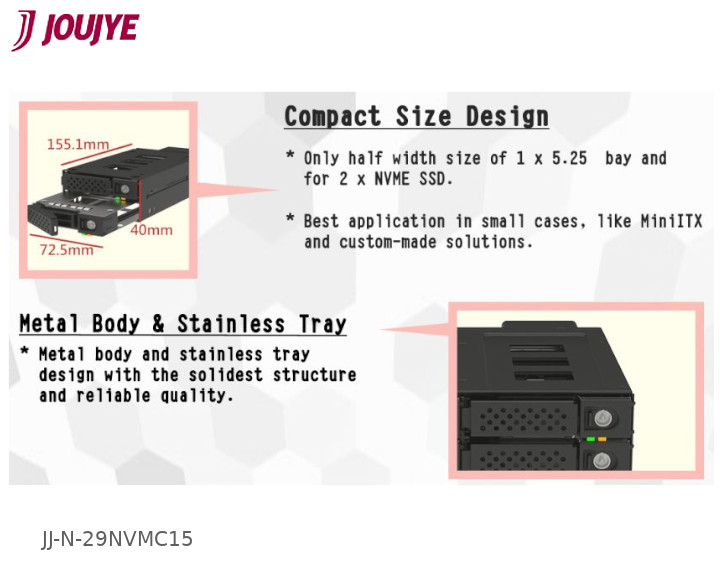

1 x 5.25" Drive bay size

For 2 x 2.5” GEN5 NVMe U.2 SSD

MCIO 8i connector x 1

Support U.2/U.3/M.2 (with M2U04 adapter)

Transfer Rate PCIe 3.0/4.0/5.0 - 32/64/128Gbps

4pin Power connector x 1

Metal key lock design

With vibration reducing springs on each HDD tray

Metal frame / Stainless & High-Grade, Heat-Resistant Thermoplastic (UL-94V0)

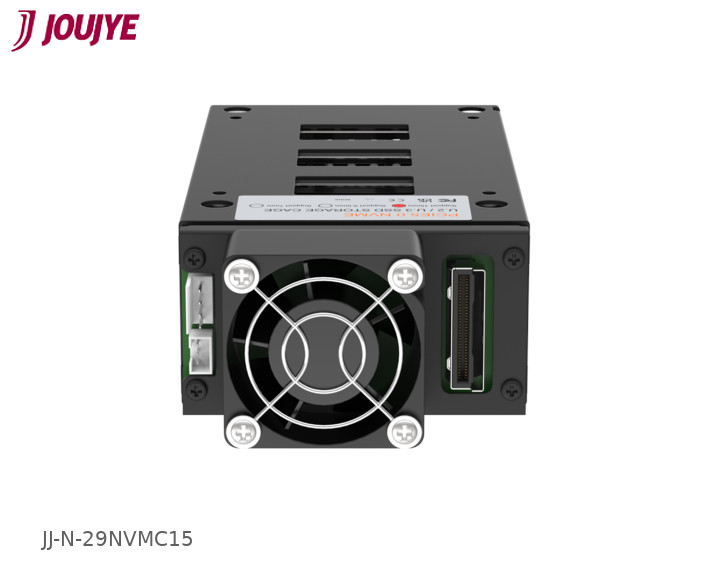

4020 cooling fan x 1

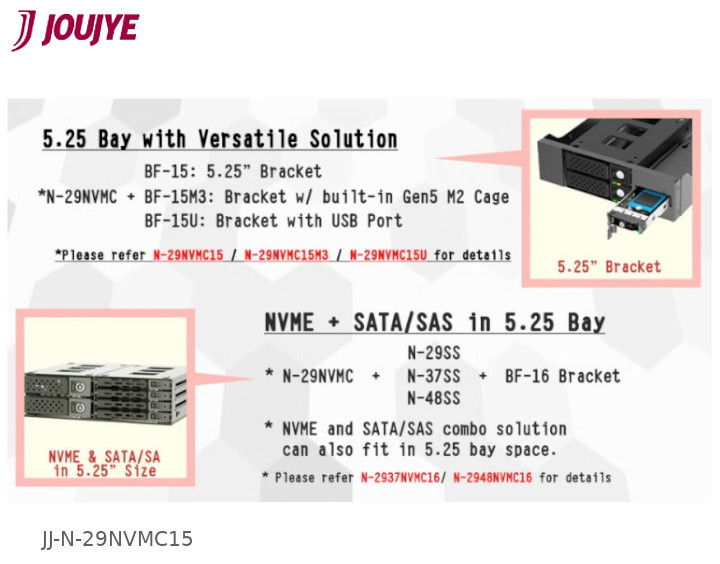

Including 5.25" bracket mounting kit

SPECIFICATIONS:

Model Name	JJ-N-29NVMC15
Form Factor	1 x 5.25" Drive bay
Support HDD types	2 x 2.5” GEN5 NVMe U.2/U.3/M.2 SSD M.2 (with M2U04 adapter) 2230/2242/2260/2280 Supported height up to 15mm PCIe 3.0/4.0/5.0 - 32/64/128 Gbps Optimized layout & material for GEN5

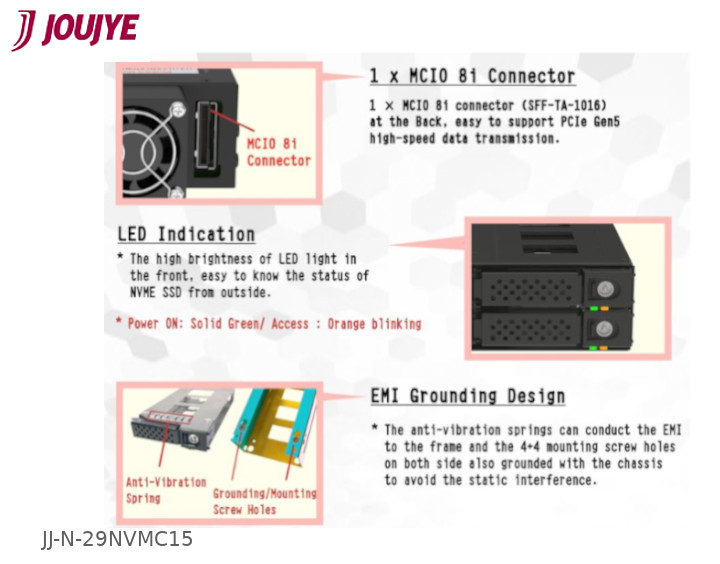

Interface	MCIO x8 Connector x 1 Mini 4pin Power Connector x 1

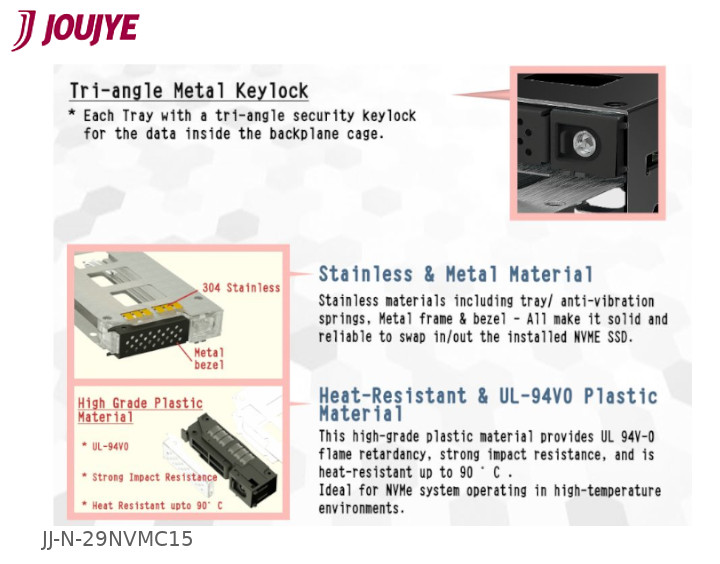

Security Design	Triangle key lock (with T-109A tray)
Material	Metal frame with ventilation design Stainless tray & high-grade, heat-resistant, thermoplastic (UL-94V0)
LED Indication	Power ON: Green HDD Access: Orange
Fan	1 x 4020 Blower Fan (7000RPM)
Colour	Black
Dimensions (LxWxH)[mm]	140.0 x 145.8 x 41.8mm
Weight	0.37Kg
