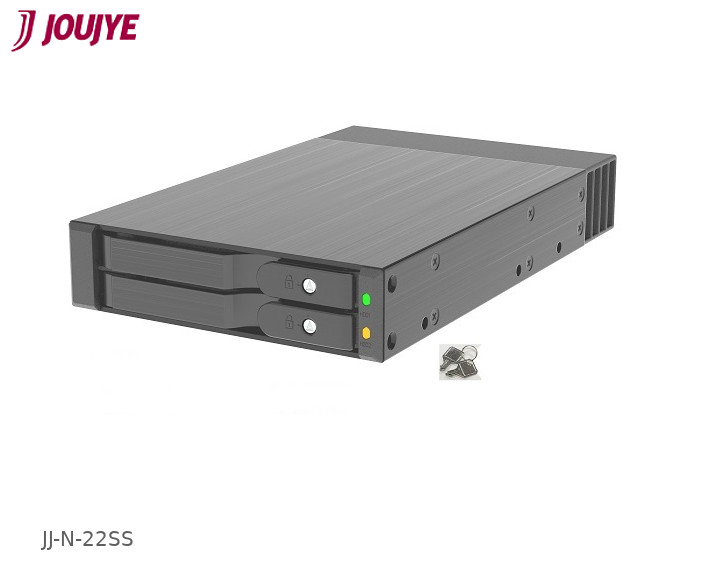

JJ-N-22SS 12G SATA/SAS for 2x2.5" SSD/HDD Mobile Rack black

item no.: A 2848

Product in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • 2 x 2.5" HDD (SSD*) trayless hot-swap aluminum mobile rack with keylock
  • Enables 2.5" SATA/SAS HDD/SSD* to be fit in 1 x 3.5" standard form factor drive bay (floppy size space) in any desktop PC or rackmount chassis
  • Reliable metal key lock with additional latch to safeguard the HDD/SSD
  • Support up to 9.5mm height

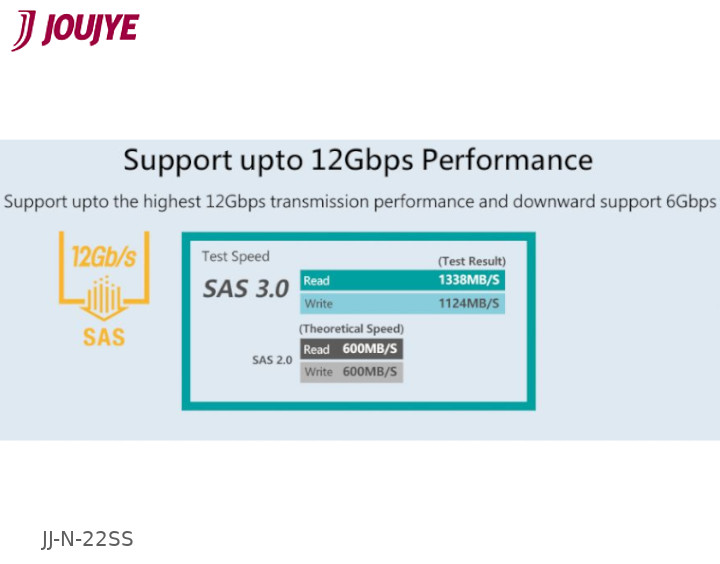

  • Support SATAI/II/III and SAS I/II/III (12Gbps) HDD/SSD
  • Cableless HDD with Golden Finger pin connection
  • Enhanced air flow design
  • Can be mounted in horizontal or vertikal way

    This 2.5" SSD backplane cage accommodates up to two 2.5" drives in a standard 3.5" bay, offering a trayless and cableless solution for reliable storage in servers and workstations. It supports drives up to 9.5 mm in height and is compatible with SATA I/II/III and SAS I/II/III (up to 12 Gbps) HDDs and SSDs.

    Secure & Reliable: Features a robust metal key lock design to protect installed drives and prevent unauthorized removal
    Cableless Design: Integrated backplane connection eliminates the need for additional cables, ensuring a cleaner installation and improved airflow
    High-End Aluminum Design: The aluminum construction enhances durability while maximizing heat dissipation for optimal drive performance

    Ideal for high-end applications, small office/home office (SoHo) environments, and any use case requiring secure and space-efficient drive installation in a 3.5" bay.

    *SSD Solid State Drive (flash based drive)

    • SPECIFICATIONS:
    Model Name JJ-N-22SS

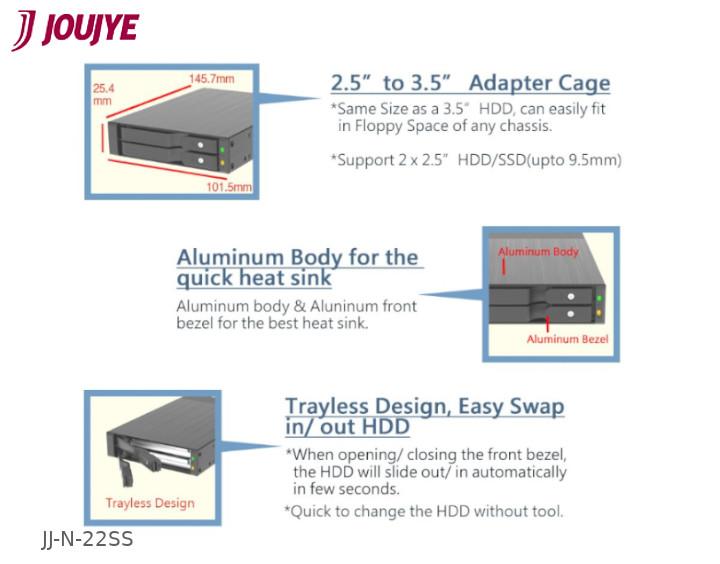

    Form Factor 1 x 3.5" Bay size for 2 x 2.5" HDD/SSD (upto 9.5mm)
    Support HDD Type 2.5" SATA I, II, III / SAS I, II, III (12Gbps) HDD & SSD

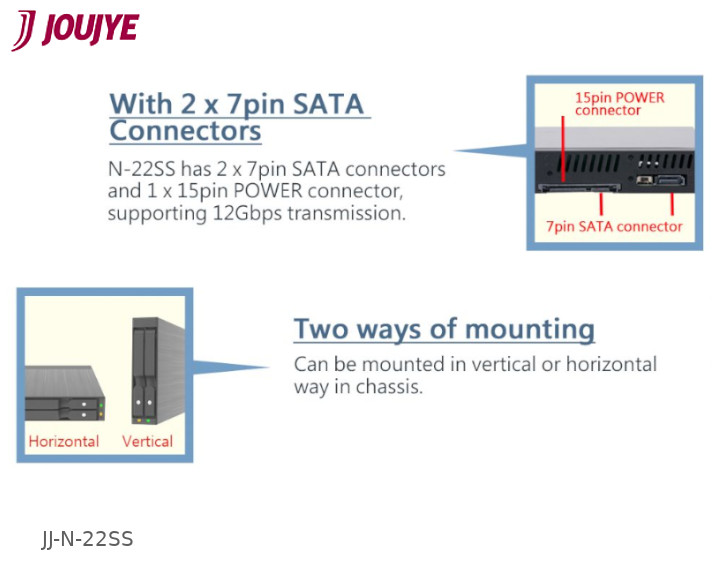

    Interface 7pin SATA connector x 2 and 15pin SATA power connector x 1

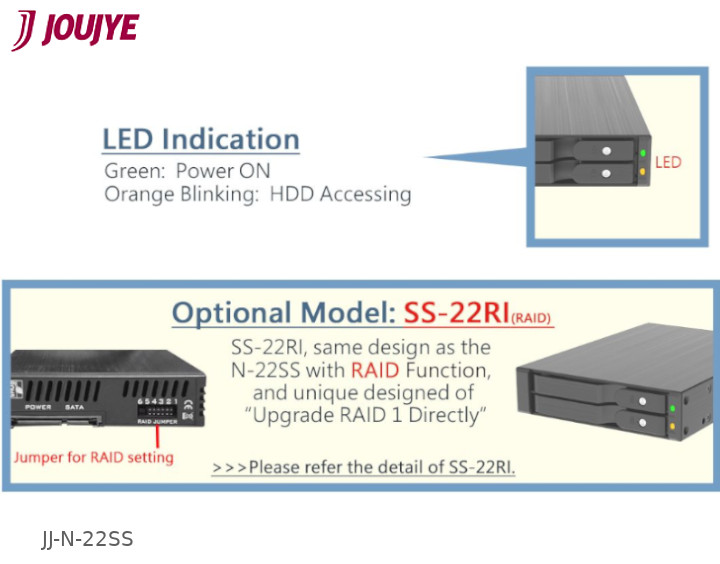

    LED Indication Power on: Green / HDD Access: Orange blinking
    Security Tri-angle Key Lock
    Material Aluminium
    Dimension 145.7(L) x 101.5(W) x 25.4(H) mm
    Weight 0.39kg
