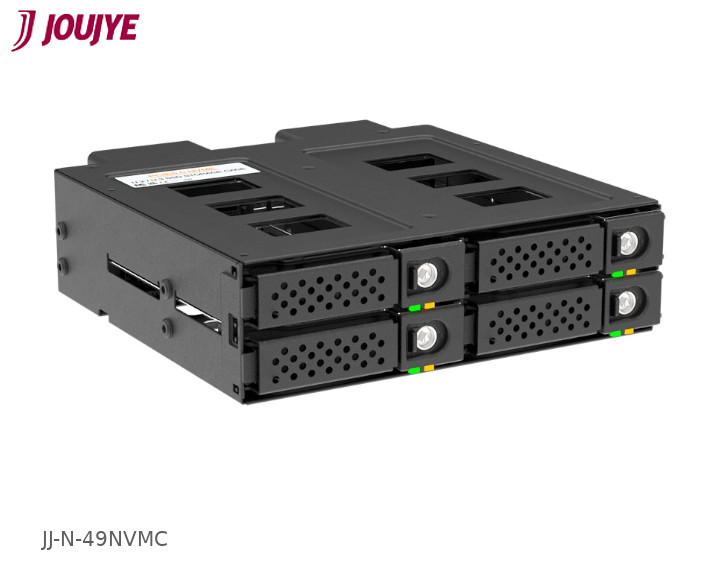

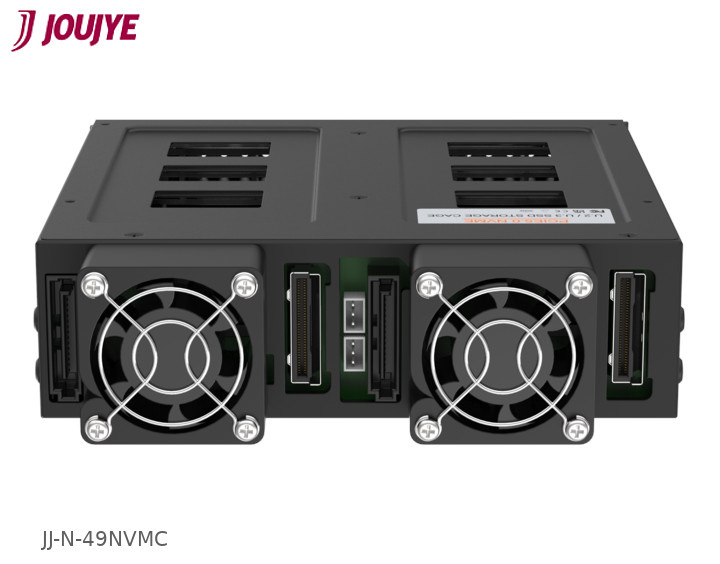

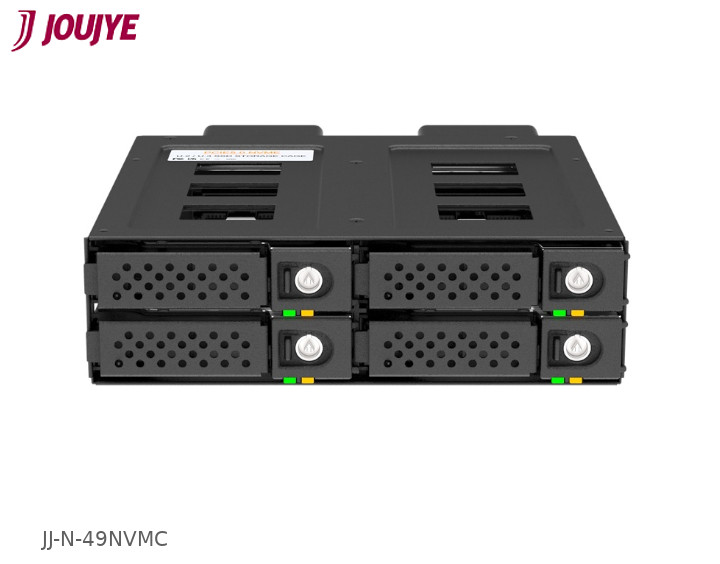

JJ-N-49NVMC/GEN5 for 4 x 2,5" NVMe U.2 SSD / 2 x MCIOx8

item no.: A 2835

Not in stock

-- €

For 4 x 2.5" NVMe U.2 HDD/SSD (up to 15mm height)

MCIO 8i Connector x 2

Transfer Rate PCIe3.0/4.0/5.0 32/64/128Gbps

For SSD Type U.2 / U.3 (with Dual Mode)

M.2 (with M2U04 adapter) 2230 / 2242 / 2260 / 2280

15pin power connector x 2

Cableless HDD connection

Incl. 40 x 40 x 20mm rear fans x 2

Metal keylock design

Aluminum body & stainless tray

LED: Power On = Solid green / Orange blinking = Accessing

SPECIFICATIONS:

Model Name	JJ-N-49NVMC
Form Factors	1 x 5.25" Bay
Support HDD types	For 4 x 2.5" NVMe U.2 HDD/SSD (upto 15mm) U.2 / U.3 (with Dual Mode) M.2 (with M2U04 adapter) 2230/2242/2260/2280 PCIe 3.0/4.0/5.0 32/64/128Gbps Supported HDD height 7mm upto 15mm
Interface	MCIOx8 Connector x 2 15pin power connector x 2
Security Design	With security metal key lock on each HDD/SSD tray
Material	Aluminum body & Stainless Tray
Specials	Each tray with anti-vibration springs PCB optimized for Gen5 speed and stability
Cooling fan	40 x 40 x 20mm x 2
LED indication	Power ON: Green Accessing: Orange blinking
Data cable	Cableless connection (w/o cables)
Operating system	Windows/Linux/Mac
Dimensions [mm]	161.5(L) x 145.8(W) x 41.6(H)
Weight	0.65 Kg
