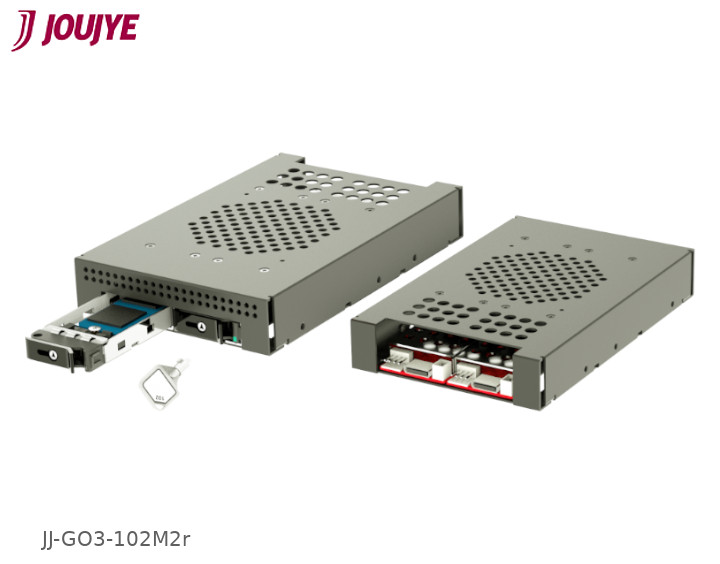

JJ-GO3-102M2r/OCuLink (SFF-8612)/ 1 x 3.5" for 2 x M.2 NVMe

item no.: A 2832

Not in stock

-- €

Oculink (SFF-8612)4i connector x 2

Support M.2 NVMe SSD (M-Key) PCIe 3.0/PCIe 4.0 x4

Support GEN3 (32Gbps) and GEN4 (64Gbps)

Small 4pin power connector x 2 + 2pin fan connector x 1

Support M.2 SSD length 2230/2242/2260/2280mm

Tool-less installation, or build-in screw

Aluminum frame + stainless tray with aluminum front bezel

With aluminum heat sink & thermal pad on the M.2 SSD carrier

With 1 x 7010 cooling fan (2800rpm)

Keylock design

SPECIFICATIONS:

Model Name	JJ-GO3-102M2r/ Oculink (SFF-8611) 1x3.5" for 2 x M.2 NVMe
Form Factors	1 x 3,5" size for 2 x M.2 NVMe SSD
Support SSD type	For 2 x M.2 NVMe SSD Support GEN3 (32Gbps) and GEN4 (64Gbps) Support M.2 NVMe SSD (M-Key) PCIe 3.0/PCIe 4.0 x4 SSD length 2230/2242/2260/2280mm
Interface	Body: 2 x Oculink (SFF-8611) 4i connector 2 x small 4pin power connector 2pin fan connector x 1
Installation Design	Tri-angle security keylock designed on the SSD tray With aluminum heat sink & thermal pad on the M.2 SSD carrier Tray: Anti-vibration/grounded springs
Material	Aluminum frame + stainless tray with aluminum front bezel
LED Indication	Power ON: Green Access: Orange blinking
Dimensions [mm]	158.5 (L) x 101.2 (W) x 25.4 (H) mm
Weight	0.32Kg
